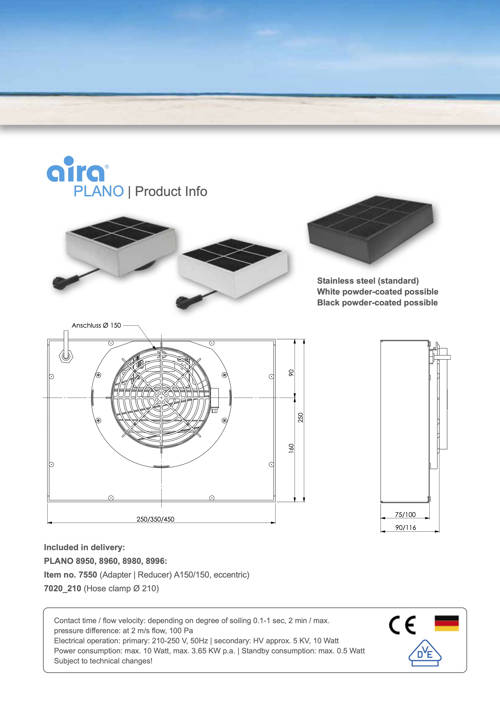

PLANO
400 / 500 / 600 / 800
Stainless steel (Standard)
White powder-coated (is possible)
Black powder-coated (is possible)
Included in the scope of delivery:
PLANO 8940, 8950, 8960, 8980: Item no.. 7550 (Adapter | Reducer) A150/150, exzentrisch)
7020_210 (Hose clamp Ø 210)
PLANO 8948, 8958, 8968, 8988: Item no. 7546 (Adapter MA120/120, eccentric)
7020_180 (Hose clamp Ø180)
PLANO 400
MA Ø 120 mm/150 mm
Item no.: Ø 150
8940
8940_white
8940_black
Item no.: Ø 120
8948
8948_white
8948_black
Dimensions: 210 x 250 x 87 mm
Air flow rate: 400 m3/h
Connection voltage: 210 – 250 Volt
Motor connection: Ø 120 + 150 mm
Weight: 2,2 kg
VP-dimensions: 400 x 260 x 230
VP-unit: 1 piece
Plug / cable: Schuko / 195 cm
PLANO 500
MA Ø 120 mm/150 mm
Item no.: Ø 150
8950
8950_white
8950_black
Item no.: Ø 120
8958
8958_white
8958_black
Dimensions: 250 x 250 x 87 mm
Air flow rate: 500 m3/h
Connection voltage: 210 – 250 Volt
Motor connection: Ø 120 + 150 mm
Weight: 2,5 kg
VP-dimensions: 400 x 260 x 230
VP-unit: 1 piece
Plug / cablel: Schuko / 195 cm
PLANO 600
MA Ø 120 mm/150 mm
Item no.: Ø 150
8960
8960_white
8960_black
Item no.: Ø 120
8968
8968_white
8968_black
Dimensions: 350 x 250 x 87 mm
Air flow rate: 600 m3/h
Connection voltage: 210 . 250 Volt
Motor connection: Ø 120 + 150 mm
Weight: 3,1 kg
VP-dimensions: 400 x 260 x 230
VP-unit: 1 piece
Plug / cable: Schuko / 195 cm
PLANO 800
MA Ø 120 mm/150 mm
Item no.: Ø 150
8980
8980_white
8980_black
Item no.: Ø 120
8988
8988_white
8988_black
Dimensions: 450 x 250 x 110 mm
Air flow rate: 800 m3/h
Connection voltage: 210 – 250 Volt
Motor connection: Ø 120 + 150 mm
Weight: 3,8 kg
VP-dimensions: 610 x 320 x 140
VP-unit: 1 piece
Plug / cable: Schuko / 195 cm
aira® PLANO buy now
You are just one click away from fresh indoor air. Use our contact form to order your aira-PLANO or to request information.
Information
Contact time / flow velocity: depending on degree of soiling 0.1-1 sec, 2 min
Max. pressure difference: at 2 m/s inflow, 100 Pa
Electrical operation: primary: 210-250 V, 50 Hz | secondary: HV approx. 5 KV, 10 watts
Power consumption: max. 10 watts, max. 3.65 KW p.a. | Standby consumption: max. 0.5 Watt
Subject to technical changes!
Downloads
aira® can be customised
The aira®-PLANO does not fit your cooker bonnet? Customised developments and special requests are also possible on request.
