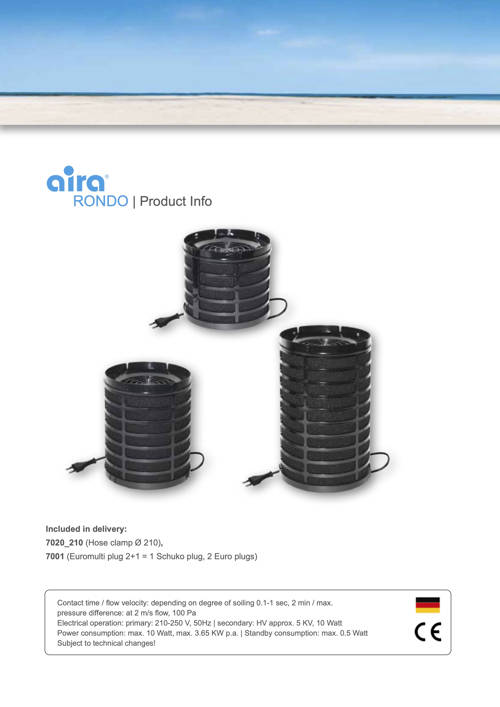

RONDO 400
MA Ø 120 mm
Item no.: 8418
Dimensions: Ø 180 x 150
Air flow rate 400 m3/h
Connection voltage: 210 – 250 Volt
Motor connection: Ø 120 mm
Weight: 1,12 kg
VP-dimensions: 400 x 260 x 230 mm
VP-unit: 1 piece
Plug / cable: Euro/150 cm
Included in the scope of delivery:
Item no. 7547 (Adapter | Reducer, MA150/120, eccentric)
7020_180 (Hose clamp Ø 180)
7001 (Euromulti plug 2+1 = 1 Schuko-, 2 Euro plugs)
RONDO 600
MA Ø 120 mm
Item no.: 8618
Dimensions: Ø 180 x 210
Air flow rate: 600 m3/h
Connection voltage: 210 – 250 Volt
Motor connection: Ø 120 mm
Weight: 1,56 kg
VP-dimensions: 400 x 260 x 230 mm
VP-unit: 1 piece
Plug / cable: Euro/150 cm
Included in the scope of delivery:
Item no. 7547 (Adapter | Reducer, MA150/120, eccentric)
7020_180 (Hose clamp Ø 180)
7001 (Euromulti plug 2+1 = 1 Schuko-, 2 Euro plugs)
RONDO 800
MA Ø 120 mm
Item no.: 8818
Dimensions: Ø 180 x 270
Air flow rate: 800 m3/h
Connection voltage: 210 – 250 Volt
Motor connection: Ø 120 mm
Weight: 1,76 kg
VP-dimensions: 400 x 260 x 230 mm
VP-unit: 1 piece
Plug / cable:: Euro/150 cm
Included in the scope of delivery:
Item no. 7547 (Adapter | Reducer, MA150/120, eccentric)
7020_180 (Hose clamp Ø 180)
7001 (Euromulti plug 2+1 = 1 Schuko-, 2 Euro plugs)
aira® RONDO buy now
You are just one click away from fresh indoor air. Use our contact form to order your aira-RONDO or to request information.
Information
Contact time / flow velocity: depending on degree of soiling 0.1-1 sec, 2 min
Max. pressure difference: at 2 m/s inflow, 100 Pa
Electrical operation: primary: 210-250 V, 50 Hz | secondary: HV approx. 5 KV, 10 watts
Power consumption: max. 10 watts, max. 3.65 KW p.a. | Standby consumption: max. 0.5 Watt
Subject to technical changes!
Downloads
aira® can be customised
The aira®-RONDO does not fit your cooker bonnet? Customised developments and special requests are also possible on request.
